Recent results on standard and nonstandard electroconvection
Electric field-induced patterns in liquid crystals have been observed and studied for about 50 years. During this time, a great variety of structures, detected under different conditions, have been described; theoretical descriptions were also developed parallel with the experiments and a huge number of papers have been published. The non-vanishing interest in the topic is due to several factors. First, most experimentalists working with new (or even well-known) liquid crystals apply sooner or later an electric field for different purposes and, as a response, often (maybe undesirably or unexpectedly) have to face with emergence of patterns. Second, understanding the complexity of the formation mechanism of regular patterns in a viscous, anisotropic fluid is an extremely challenging theoretical task. Third, specialists in display fabrication or in other applications are also interested in the results; either to make use of them or in order to avoid field-induced patterns.
In this review, we attempt to provide a systematic overview of the large amount of published results, focusing on recent achievements, about the three main types of electric field-induced patterns: transient patterns during the Freedericksz transition, flexoelectric domains and electroconvection. As a result of different instability mechanisms, a variety of pattern morphologies may arise. We address the physical background of the mechanisms, specify the conditions under which they may become effective, discuss the characteristics of the patterns, and summarize the possibilities of morphological transitions induced by frequency, voltage or temperature variations. Special emphasis is given to certain topics, which recently have gained enhanced interest from experimental as well as theoretical point of view, like driving with ultra-low frequencies or non-sinusoidal (superposed) waveforms, and the dynamics of defects and embedded colloidal particles. Assisting newcomers to the field, we also mention some, yet unresolved, problems, which may need further experimental and/or theoretical studies.
N. Éber, P. Salamon and Á. Buka:
Electrically induced patterns in nematics and how to avoid them, Liquid Crystals Reviews 4 (2),
101-134 (2016). [pdf]

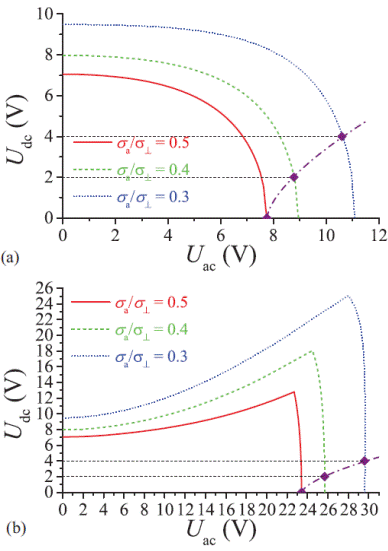

The effect of superposed dc and ac applied voltages on two types
of spatially periodic instabilities in nematic liquid crystals, flexoelectric
domains (FD), and electroconvection (EC) was studied. The onset
characteristics, threshold voltages, and critical wave vectors were determined.
We found that in general the superposition of driving with different time
symmetries inhibits the pattern forming mechanisms for FD and EC as well. As a consequence,
the onset extends to much higher voltages than the individual dc or ac
thresholds. A dc-bias-induced reduction of the crossover frequency from the
conductive to the dielectric EC regimes and a peculiar transition between two
types of flexodomains with different wavelengths were detected. Direct
measurements of the change of the electrical conductivity and its anisotropy,
induced by the applied dc voltage component, showed that the dc bias
substantially affects both parameters. Taking into account the experimentally
detected variations of the conductivity in the linear stability analysis of the
underlying nematohydrodynamic equations, a qualitative agreement with the
experimental findings on the onset behavior of spatially periodic instabilities
was obtained.
N. Éber, P. Salamon, B. A.
Fekete, R. Karapinar, A. Krekhov, and Á. Buka: Suppression of spatially
periodic patterns by dc voltage, Phys. Rev. E 93, 042701
(2016). [pdf]
In
contrast to the predictions of the standard theory of electroconvection (EC), our
experiments showed that the action of superposed ac and
dc voltages rather inhibits pattern formation than
favors the emergence of instabilities; the patternless region may extend to
much higher voltages than the individual ac or dc thresholds. The pattern
formation induced by such asymmetrical voltage was explored in a nematic liquid
crystal in a wide frequency range. The findings could be qualitatively explained for the conductive EC, but
represent a challenging problem for the dielectric EC.
P.
Salamon, N. Éber, B. Fekete, and Á. Buka: Inhibited pattern formation by asymmetrical high-voltage
excitation in nematic fluids. Phys. Rev. E, 90, 022505/1-5 (2014) [pdf]
The effect of superimposed ac and dc electric fields on
the formation of electroconvection and flexoelectric patterns in nematic
liquid crystals was studied. For selected ac frequencies, an extended standard model of the electrohydrodynamic
instabilities was used to characterize the onset of pattern formation
in the two-dimensional parameter space of the magnitudes of the ac and dc
electric field components. Numerical as well as
approximate analytical calculations demonstrate that depending on the
type of patterns and on the ac frequency, the combined action of ac and dc
fields may either enhance or suppress the formation
of patterns. The theoretical predictions are qualitatively confirmed
by experiments in most cases. Some discrepancies, however, seem to indicate
the need to extend the theoretical description. |
Theory Experiment |
Theory Experiment |
Alexei Krekhov, Werner
Decker, Werner Pesch, Nándor Éber, Péter Salamon, Balázs Fekete, and Ágnes
Buka: Patterns driven by combined ac and dc electric
fields in nematic liquid crystals, Phys. Rev. E 89, 052507/1-9 (2014) [pdf]

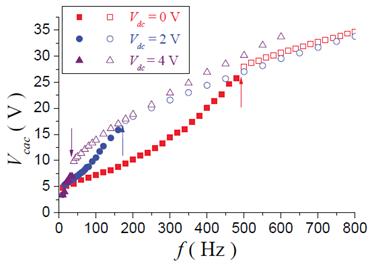

The
behaviour of an electric field induced pattern forming instability, the electroconvection in a nematic liquid crystal, was
studied under the influence of superposed dc and ac
electric voltages. The onset parameters (threshold voltages and
critical wave numbers) were determined. It was found that the superposition
of voltages inhibits the pattern forming mechanism; therefore the patternless
region extends to much higher voltages than the individual ac or dc
thresholds. A dc bias induced reduction of the electrical conductivity and a shift of the crossover frequency from the conductive
to dielectric electroconvection regimes were also detected. |
|
N. Éber, P. Salamon, B. Fekete, T. Tóth-Katona, R.
Karapinar, M. Sacks, and Á. Buka: Electroconvection in a Nematic Liquid Crystal
under Superposed AC and DC Electric Voltages, In. Proceedings
of the 15th Small Triangle Meeting on Theoretical Physics, Stará Lesná,
October 27-30, 2013, J. Buša, M. Hnatič and P. Kopčanský (eds.),
IEP SAS, Košice, 2014, pp. 46-51. [pdf]

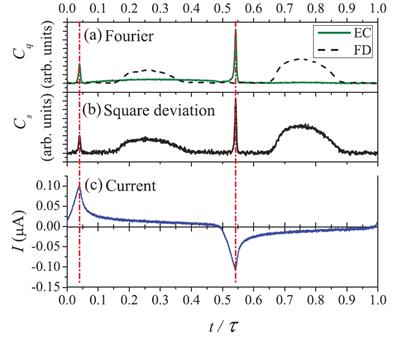

Pattern
forming instabilities induced by ultralow frequency
sinusoidal voltages were studied in a rodlike nematic liquid crystal by microscopic observations and simultaneous electric current measurements. Two pattern
morphologies, electroconvection (EC) and flexodomains (FD), were
distinguished, both appearing as time separated
flashes within each half period of driving. A correlation was found
between the time instants of the EC flashes and those of the nonlinear
current response. The voltage dependence of the pattern contrast C(U) for EC has a different character than
that for the FD. The flattening of C(U)
at reducing the frequency was described in terms of an imperfect bifurcation
model. Analyzing the threshold characteristics of FD, the temperature
dependence of the difference |e1 − e3| of the flexoelectric coefficients was also determined by considering elastic anisotropy. |
|
P. Salamon, N. Éber, A. Krekhov and Á.
Buka: Flashing flexodomains and electroconvection rolls in a nematic liquid
crystal. Phys. Rev. E. 87, 032505/1-10 (2013) [pdf]
In this
chapter the influence of flexoelectricity on pattern
formation induced by an electric field in nematics will be summarized.
Two types of patterns will be discussed in the linear regime, the equilibrium
structure of flexoelectric domains and the dissipative electroconvection (EC)
rolls. In a separate section, recent experimental and theoretical results on
the competition and crossover between the
flexoelectric domains and EC patterns will be described. |
|
Á. Buka, T.
Tóth-Katona, N. Éber, A. Krekhov and W. Pesch, Chapter 4. The role of flexoelectricity in pattern formation. In eds. Á. Buka and N. Éber, Flexoelectricity in Liquid Crystals.
Theory, Experiments and Applications, Imperial College Press, London, 2012. pp. 101–135

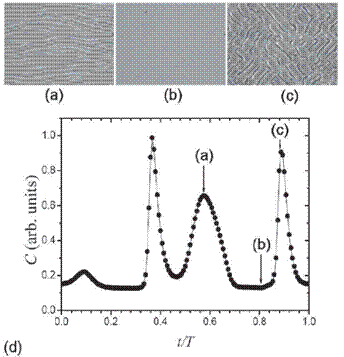

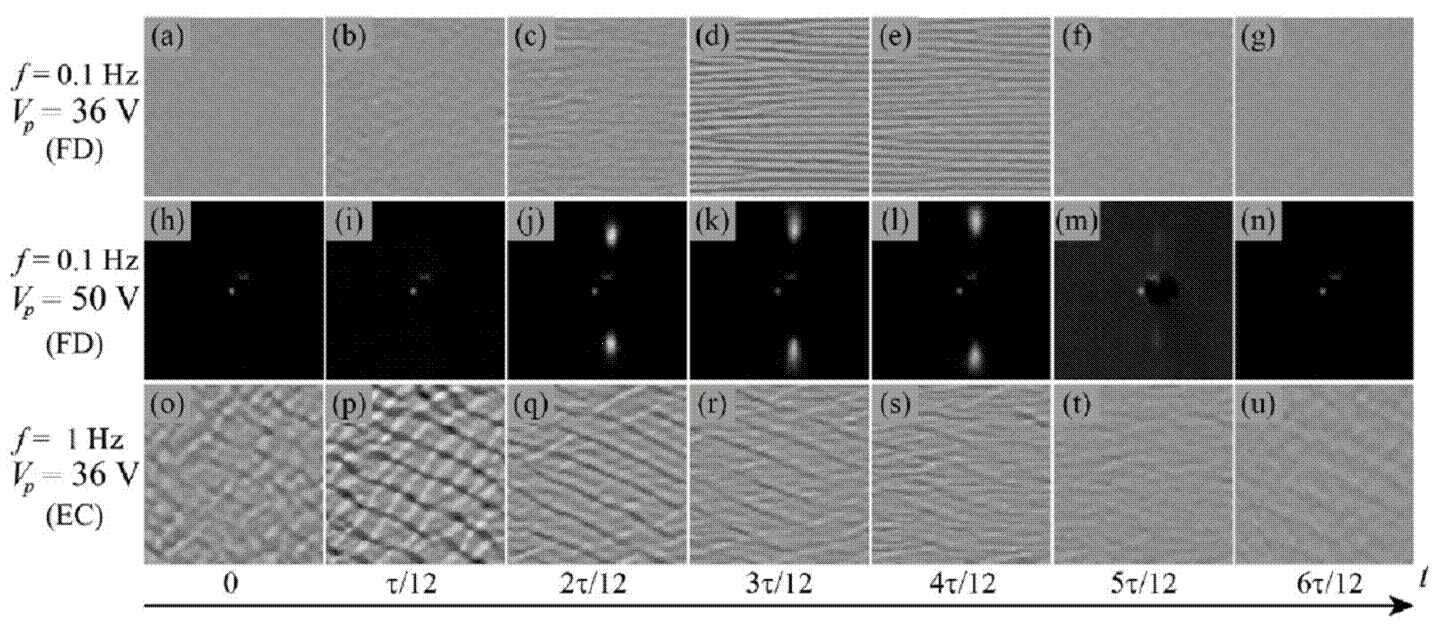

The temporal evolution of patterns within the driving period of the ac voltage was
studied in the 10 mHz - 250 Hz frequency range. It was
shown that the stationary electroconvection
pattern of the conductive regime transforms into a flashing one at ultralow frequencies, existing
only in narrow time windows within the period. Furthermore a transition between electroconvection and flexoelectric
domains was detected which is repeating in each half period. The two
patterns are well separated in time and in Fourier space. Simultaneous current
measurements uncovered that the electric properties of the polyimide orienting
layers influence the redistribution of the applied voltage. The experimental
findings are in good qualitative agreement with the
theoretical predictions based on an extended standard model including
flexoelectricity.
[N. Éber,L.O. Palomares, P. Salamon, A. Krekhov and Á. Buka:
Temporal evolution and alternation of mechanisms of electric-field-induced
patterns at ultralow-frequency driving. Phys. Rev. E 86, 021702/1-9 (2012).] [pdf]
[N. Éber, L.O.
Palomares, P. Salamon, A. Krekhov, Á. Buka: Competition between Electric Field
Induced Equilibrium and Dissipative Patterns at Low Frequency Driving in
Nematics. Invited talk at the 24th International Liquid Crystal Conference,
Mainz, August 19th - 24th, 2012] [pdf]

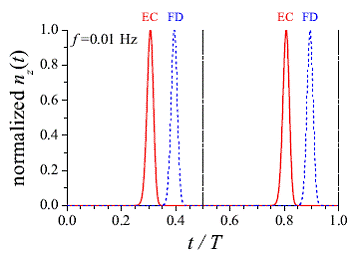

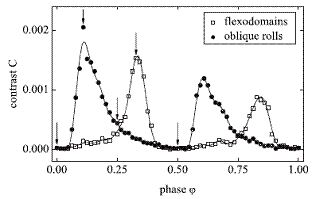

The temporal evolution of electric field induced patterns within the driving period was studied in the nematic
Phase 5 in a wide frequency range. The compound exhibits a transition from
conductive to dielectric regime of electroconvection (EC) at high frequency. At
low frequencies we found that the conductive EC rolls
evolve and decay in each half period of driving. Following EC rolls another
pattern, flexoelectric domains (FD), also appear
as flashes in the same half period. This
scenario thus represents a repetitive morphological
transition between dissipative (EC) and equilibrium (FD) patterns.
[N. Éber, P. Salamon and Á. Buka: Competition
between Electric Field Induced Equilibrium and Non-Equilibrium Patterns at Low
Frequency Driving in Nematics. In Proceedings of the 13th Small
Triangle Meeting on Theoretical Physics, Stará Lesná, November 14-16, 2011,
J. Busa, M. Hnatic and P. Kopcansky (eds.), IEP SAS, Kosice, 2012, pp. 56-63.] [pdf]

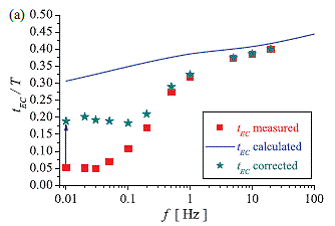

The temporal evolution of the spatially periodic electroconvection (EC) patterns has been studied within the period of the driving ac voltage by monitoring the light intensity diffracted from the pattern. Measurements have been carried out on a variety of nematic systems, including those with negative dielectric and positive conductivity anisotropy, exhibiting 'standard EC' (s-EC), those with both anisotropies negative exhibiting 'nonstandard EC' (ns-EC), as well as those with the two anisotropies positive. Theoretical predictions have been confirmed for stationary s-EC and ns-EC patterns. Transitions with Hopf bifurcation have also been studied. While traveling had no effect on the temporal evolution of dielectric s-EC, traveling conductive s-EC and ns-EC patterns exhibited a substantially altered temporal behavior with a dependence on the Hopf frequency. It has also been shown that in nematics with both anisotropies positive, the pattern develops and decays within an interval much shorter than the period, even at relatively large driving frequencies. |
|
[T. Tóth-Katona, N. Éber,
and Á. Buka: Temporal response to harmonic driving in electroconvection. Phys. Rev. E 83, 061704/1-8
(2011)] [pdf]

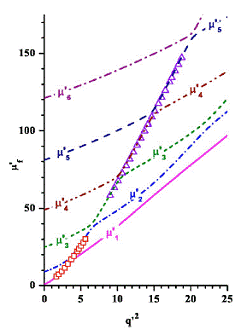

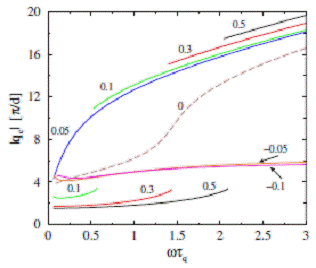

We present in this paper a detailed analysis of the flexoelectric instability of a planar nematic layer in the presence of an alternating electric field (frequency ω), which leads to stripe patterns (flexodomains) in the plane of the layer. This equilibrium transition is governed by the free energy of the nematic, which describes the elasticity with respect to the orientational degrees of freedom supplemented by an electric part. Surprisingly the limit ω → 0 is highly singular. In distinct contrast to the dc case, where the patterns are stationary and time independent, they appear at finite, small ω periodically in time as sudden bursts. Flexodomains are in competition with the intensively studied electrohydrodynamic instability in nematics, which presents a nonequilibrium dissipative transition. It will be demonstrated that ω is a very convenient control parameter to tune between flexodomains and convection patterns, which are clearly distinguished by the orientation of their stripes. |
|
[A.
Krekhov, W.
Pesch, Á. Buka: Flexoelectricity
and pattern formation in nematic liquid crystals. Phys. Rev. E 83, 051706 (2011)]
[pdf]
We reexamine the influence of the flexoelectricity on the electroconvection (EC), the effect which has previously been studied in the conductive EC regime only. Now we extend our studies to the dielectric EC, and to the parameter range for which the standard model of EC excludes the existence of the instability. First, we demonstrate that inclusion of flexoelectricity into the standard model of EC provides a finite EC threshold even for this "forbidden" material parameter range (in accordance with the experiments). Second, we show that flexoelectricity considerably decreases the threshold voltage for the dielectric regime. Finally, we present a novel frequency dependence of the threshold voltage for all EC patterns in the case when the period of the driving frequency becomes comparable with the director relaxation time.
|
|
[T. Tóth-Katona, N. Éber, Á. Buka: Flexoelectricity in electroconvection. Mol. Cryst. Liq.
Cryst. 511, 11-24 (2009)] [pdf]

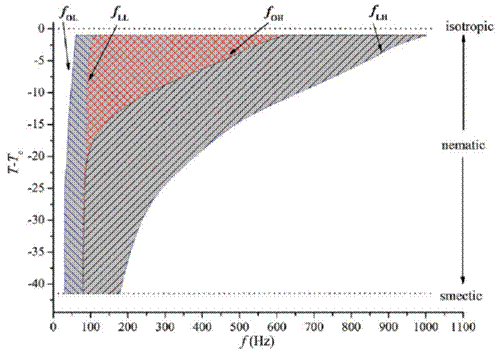

Periodic stripe patterns which form when an electric field is applied to a thin nematic liquid crystal layer with a very low conductivity are discussed. In this case the dielectric electroconvection mode persists down to very low frequencies of the driving voltage. A Lifschitz point, i.e., a transition from normal to oblique rolls is detected in the dielectric regime. A crossover from electroconvection to flexoelectric domains occurs for extremely low frequencies of about 0.1 Hz. The crossover scenario yields pattern morphologies characteristic for both mechanisms, i.e., electroconvection and flexoelectric domains which appear consecutively within one period of the driving voltage. A theoretical description of the onset characteristics of dielectric convection, which is based on an extended model including flexoelectricity, is also presented. |
|
[M. May, W.
Schöpf, I. Rehberg, A. Krekhov, A. Buka: Transition
from longitudinal to transversal patterns in an anisotropic system. Phys. Rev. E 78, 046215 (2008)] [pdf]

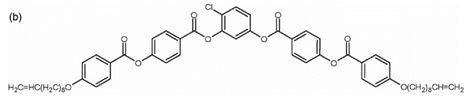

An unexpected type of behavior
in electroconvection (EC) has been detected in nematic liquid crystals (NLCs)
under the condition of comparable time scales of the
director relaxation and the period of the driving ac voltage. The
studied NLCs exhibit standard EC (s-EC) at the
onset of the instability, except one compound in which nonstandard
EC (ns-EC) has been detected. In the relevant frequency region, the
threshold voltage for conductive s-EC bends down considerably, while for
dielectric s-EC it bends up strongly with the decrease of the driving
frequency. We show that inclusion of the flexoelectric
effect into the theoretical description of conductive s-EC leads to
quantitative agreement, while for dielectric s-EC a qualitative agreement is
achieved. The frequency dependence of the threshold voltage for ns-EC strongly
resembles that of the dielectric s-EC.
[T. Tóth-Katona, N. Éber, Á. Buka, A. Krekhov:
Flexoelectricity and competition of time scales in electroconvection, Phys. Rev. E. 78, 036306
(2008)] [pdf]
A systematic
overview of various electric-field induced pattern forming instabilities in
nematic liquid crystals is given. The standard hydrodynamic description of
nematics predicts the occurrence of striped patterns
(rolls) in various wavenumber ranges, which depend
on the anisotropy of the dielectric permittivity and that of the electrical
conductivity as well as on the initial director orientation (planar or
homeotropic). We discuss in detail three basic configurations with emphasis on
the characterization of the threshold voltage and the critical wavenumber of
the resulting patterns. Some features of the weakly
nonlinear behavior are also addressed. Experimental exploration of
additional pattern types, not captured by the standard model of
electroconvection, is also presented. The impact of flexoelectricity as a
possible explanation of the nonstandard EC patterns is discussed.
[Á. Buka, N. Éber, W. Pesch, L.
Kramer: Isotropic and anisotropic electroconvection. Phys. Reports, 448,
115-132 (2007)] [pdf]
We present experimental measurements near the onset of electroconvection (EC) of homeotropically aligned nematic liquid crystals Phase 5A and MBBA. A voltage of rms value V0 and frequency f was applied. With increasing V0, EC occurred after the bend Freedericksz transition. We found supercritical bifurcations to EC that were either stationary bifurcations or Hopf bifurcations to traveling convection rolls, depending on the sample conductances. Results for the onset voltages Vc, the critical wave numbers kc, the obliqueness angles qc, and the traveling-wave (Hopf) frequencies at onset wc over a range of sample conductances and driving frequencies are presented and compared, to the extent possible, with theoretical predictions. For the most part good agreement was found. However, the experiment revealed some unusual results for the orientations of the convection rolls relative to the direction selected by the Freedericksz domain. |
|
[S.-Q. Zhou, N. Éber, Á. Buka, W. Pesch, G. Ahlers: Onset of electro-convection in homeotropically
aligned nematic liquid crystal. Phys. Rev. E, 74, 046211
(2006)] [pdf]
The decay of stripe patterns in planarly aligned nematic liquid crystals has been studied experimentally and theoretically. The initial patterns have been generated by the electrohydrodynamic instability and a light diffraction technique has been used to monitor their decay. In our experiments different decay rates have been observed as a function of the pattern wave number. According to our theoretical analysis they belong to a spectrum of decay modes and are individually selected in dependence on the initial conditions. Additional insight has emerged from a refined physical optical description of the diffraction intensity. The results compare well with experiments, which include also controlled modifications of the initial conditions to assess different decay modes.
|
|
[W. Pesch, L. Kramer, N.
Éber, Á. Buka: The Role of
Initial Conditions in the Decay of Spatially Periodic Patterns in a Nematic
Liquid Crystal. Phys. Rev. E, 73,
061705 (2006)] [pdf]

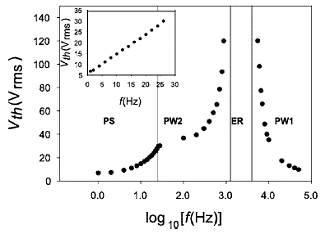

A systematic overview of various electric-field induced pattern forming instabilities
in nematic liquid crystals is given. Particular
emphasis is laid on the characterization of the threshold voltage and the
critical wavenumber of the resulting patterns. The standard hydrodynamic
description of nematics predicts the occurrence of striped
patterns (rolls) in five different wavenumber
ranges, which depend on the anisotropies of the dielectric permittivity
and of the electrical conductivity as well as on the initial director
orientation (planar or homeotropic). Experiments have revealed two additional
pattern types which are not captured by the standard model of electroconvection
and which still need a theoretical explanation.
[Á.
Buka, N. Éber, W. Pesch, L. Kramer: Convective patterns in liquid crystals driven
by electric field. In.. Self-Assembly,
Pattern Formation and Growth Phenomena in Nano-Systems, Eds. A. A.
Golovin, A. A. Nepomnyashchy, NATO Science Series II, Mathematica, Physics and
Chemistry, Vol. 218, Springer, Dordrecht, 2006, pp. 55-82] [pdf]
Electric
field-induced patterns in liquid crystals have been observed and studied for
about 50 years. During this time, a great variety of structures, detected under
different conditions, have been described; theoretical descriptions were also
developed parallel with the experiments and a huge number of papers have been
published. The non-vanishing interest in the topic is due to several factors. First,
most experimentalists working with new (or even well-known) liquid crystals
apply sooner or later an electric field for different purposes and, as a
response, often (maybe undesirably or unexpectedly) have to face with emergence
of patterns. Second, understanding the complexity of the formation mechanism of
regular patterns in a viscous, anisotropic fluid is an extremely challenging theoretical
task. Third, specialists in display fabrication or in other applications are
also interested in the results; either to make use of them or in order to avoid
field-induced patterns.
In this
review, we attempt to provide a systematic overview of the large amount of
published results, focusing on recent achievements, about the three main types
of electric field-induced patterns: transient patterns during the Freedericksz
transition, flexoelectric domains and electroconvection. As a result of different
instability mechanisms, a variety of pattern morphologies may arise. We address
the physical background of the mechanisms, specify the conditions under which
they may become effective, discuss the characteristics of the patterns, and
summarize the possibilities of morphological transitions induced by frequency,
voltage or temperature variations. Special emphasis is given to certain topics,
which recently have gained enhanced interest from experimental as well as
theoretical point of view, like driving with ultra-low frequencies or
non-sinusoidal (superposed) waveforms, and the dynamics of defects and embedded
colloidal particles. Assisting newcomers to the field, we also mention some,
yet unresolved, problems, which may need further experimental and/or
theoretical studies.
N. Éber, P. Salamon and Á. Buka:
Electrically induced patterns in nematics and how to avoid them, Liquid Crystals Reviews 4 (2),
101-134 (2016). [pdf]

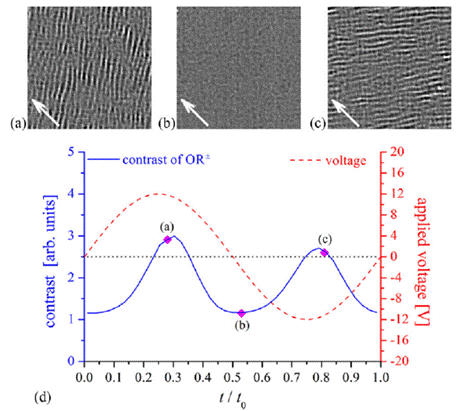

A regular domain structure consisting of parallel stripes – flexodomains – have been induced by low frequency
(subHz) electric voltage in a bent core nematic liquid crystal. The wavelength
of the pattern is in the range of 1–10 micrometers and thus can conveniently be
observed in a polarizing microscope. It also serves as an optical grating and produces a regular system of laser
diffraction spots. The pattern was found to emerge and disappear consecutively
in each half period of the driving, with the wavelength
of the flexodomains changing periodically as the ac voltage oscillates.
Analyzing the polarization characteristics of the diffracted light, the
polarization of the first order spot was found perpendicular to that of the
incident light, in accordance with a recent theoretical calculation.
Ming-Ya Xu, Meng-jie Zhou, Ying Xiang, Péter
Salamon, Nándor Éber, and Ágnes Buka: Domain structures as optical gratings
controlled by electric field in a bent-core nematic. Optics Express 23(12), 15224 (2015) [pdf]
Electric-field-induced
patterns of diverse morphology have been observed over a wide frequency range
in a recently synthesized bent-core nematic
(BCN) liquid crystal. At low frequencies (up to ∼25 Hz), the BCN exhibited unusual polarity-dependent
patterns. When the amplitude of the ac field was enhanced, these two
time-asymmetrical patterns turned into time-symmetrical prewavylike stripes. At ac frequencies in the
middle-frequency range (∼50–3000
Hz), zigzag patterns were detected whose
obliqueness varied with the frequency. Finally, if the frequency was
increased above 3 kHz, the zigzag pattern was replaced by another,
prewavylike pattern, whose threshold voltage depended on the frequency;
however, the wave vector did not. For a more complete characterization, material parameters such as elastic constants,
dielectric permittivities, and the anisotropy of the diamagnetic
susceptibility were also determined. |
|
Ying Xiang, Meng-jie Zhou, Ming-Ya Xu, Péter Salamon, Nándor Éber, and Ágnes Buka: Unusual polarity-dependent
patterns in a bent-core nematic liquid crystal under low-frequency ac field, Phys. Rev. E 91, 042501 (2015) [pdf].

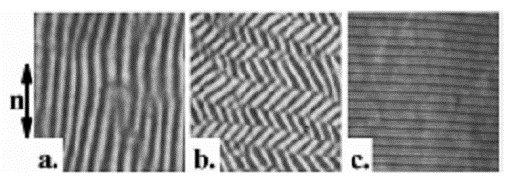

Two
kinds of electroconvection patterns in an ether-bridged
bent-core nematic liquid crystal material (BCN), which appear in different
frequency ranges, are examined and compared. One is a longitudinal pattern with the stripes parallel to the orientation
of the BCN and with a periodicity of approximately the cell thickness,
occurring in the high-frequency range of several hundreds Hz; the other one
is oblique stripes, which results in a zigzag
pattern, and appears in the low-frequency range of several tens Hz. In
addition, within an intermediate-frequency range, transformations
from oblique to longitudinal and then to normal stripes occur at
increased ac voltages. In particular, we investigated the temperature
behavior of longitudinal and oblique stripes: When the temperature T increases
and approaches the clearing temperature Tc, the contrast of the
domains is enhanced and the frequency range of existence becomes wider, while
the onset voltages increase only moderately instead of diverging, thus
suggesting an isotropic mechanism of pattern formation. |
|
Ying Xiang, Yi-Kun Liu, Ágnes Buka, Nándor Éber, Zhi-Yong
Zhang, Ming-Ya Xu, and Everett Wang: Electric-field-induced
patterns and their temperature dependence in a bent-core liquid crystal, Phys. Rev. E 89, 012502/1-9 (2014) [pdf]
In this chapter the influence of
flexoelectricity on pattern formation induced by an electric field in
nematics will be summarized. Two types of patterns will be discussed in the
linear regime, the equilibrium structure of flexoelectric domains and the
dissipative electroconvection (EC) rolls. In a separate section, recent
experimental and theoretical results on the competition and crossover between
the flexoelectric domains and EC patterns will be described.
Á. Buka, T.
Tóth-Katona, N. Éber, A. Krekhov and W. Pesch, Chapter 4. The role of flexoelectricity in pattern formation. In eds. Á. Buka and N. Éber, Flexoelectricity in Liquid Crystals.
Theory, Experiments and Applications, Imperial College Press, London, 2012. pp. 101–135
This article summarizes the results obtained by various
experimental methods on the physical properties of a bent-core
nematic liquid crystal 4-chloro-1,3-phenylene bis-4-[40-(9-decenyloxy)
benzoyloxy] benzoate (ClPbis10BB). The material
exhibits unusual properties in all aspects tested. Its bend flexoelectric
coefficient is 1000 times larger than in calamitics; it is viscoelastic with a
large, shear-rate-dependent viscosity. Its bend and twist elastic constants are
abnormally low; thus the nematic phase can be rendered to be a blue fog phase
with a small amount of chiral dopant. It shows very high flow birefringence and
unusually small leading Landau coefficient. It has two types of isotropic
phases; at lower temperature it is probably tetrahedratic that can be
transferred into the nematic phase with magnetic field. ClPbis10BB has a
frequency-dependent conductivity anisotropy which is characterized by a double
sign inversion. It exhibits various electroconvection
(EC) patterns which are currently not understood in the frame of the
standard theory of EC.
Á. Buka, N. Éber, K.
Fodor-Csorba, A. Jákli and P. Salamon: Physical properties of a bent-core nematic
liquid crystal and its mixtures with calamitic molecules. Phase Transitions 85, 872-887 (2012) [pdf]

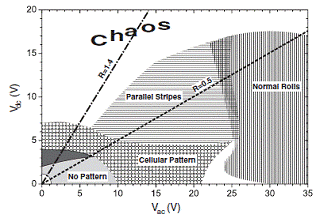

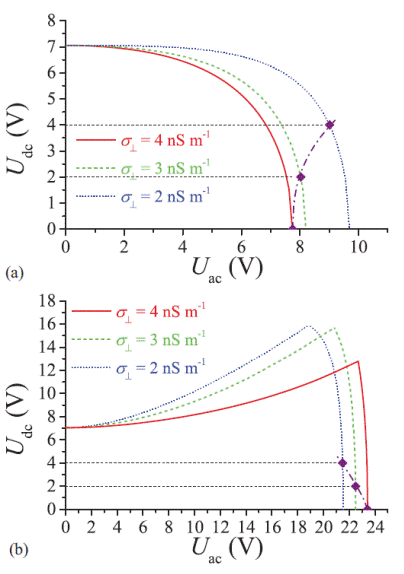

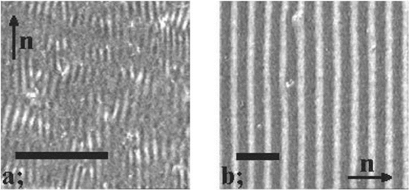

A nematic liquid crystal with high, positive dielectric anisotropy (5CB) has been studied under the influence of the combined action of a dc and an ac electric field. Broad frequency, voltage, and cell thickness ranges were considered. Pattern morphologies were identified; the thresholds and critical wave numbers were measured and analyzed as a function of frequency, dc-to-ac voltage ratio, and thickness. The current-voltage characteristics were simultaneously detected. |
|
[L.E. Aguirre,
E. Anoardo, N. Éber and Á. Buka: Regular structures in 5CB liquid crystals under the joint action of ac
and dc voltages. Phys.
Rev. E 85, 041703/1-9 (2012)] [pdf]

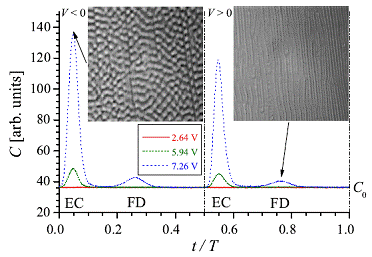

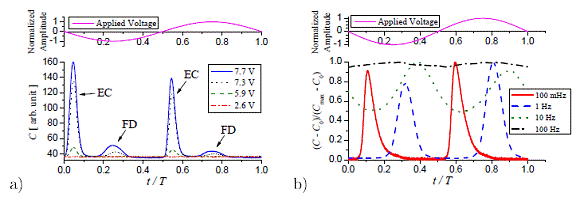

The temporal evolution of the spatially periodic electroconvection (EC) patterns has been studied within the period of the driving ac voltage by monitoring the light intensity diffracted from the pattern. Measurements have been carried out on a variety of nematic systems, including those with negative dielectric and positive conductivity anisotropy, exhibiting "standard EC" (s-EC), those with both anisotropies negative exhibiting "nonstandard EC" (ns-EC), as well as those with the two anisotropies positive. Theoretical predictions have been confirmed for stationary s-EC and ns-EC patterns. Transitions with Hopf bifurcation have also been studied. While traveling had no effect on the temporal evolution of dielectric s-EC, traveling conductive s-EC and ns-EC patterns exhibited a substantially altered temporal behavior with a dependence on the Hopf frequency. It has also been shown that in nematics with both anisotropies positive, the pattern develops and decays within an interval much shorter than the period, even at relatively large driving frequencies. |
|
[T. Tóth-Katona, N. Éber,
and Á. Buka: Temporal response to harmonic driving in electroconvection. Phys. Rev. E 83, 061704/1-8
(2011)] [pdf]
We present in this paper a detailed analysis of the flexoelectric instability of a planar nematic layer in the presence of an alternating electric field (frequency ω), which leads to stripe patterns (flexodomains) in the plane of the layer. This equilibrium transition is governed by the free energy of the nematic, which describes the elasticity with respect to the orientational degrees of freedom supplemented by an electric part. Surprisingly the limit ω → 0 is highly singular. In distinct contrast to the dc case, where the patterns are stationary and time independent, they appear at finite, small ω periodically in time as sudden bursts. Flexodomains are in competition with the intensively studied electrohydrodynamic instability in nematics, which presents a nonequilibrium dissipative transition. It will be demonstrated that ω is a very convenient control parameter to tune between flexodomains and convection patterns, which are clearly distinguished by the orientation of their stripes. |
|
[A. Krekhov, W. Pesch, Á. Buka: Flexoelectricity and pattern formation in nematic
liquid crystals. Phys. Rev. E 83, 051706
(2011)] [pdf]

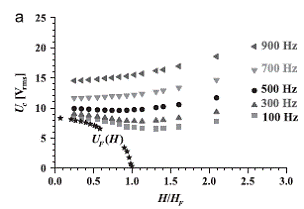

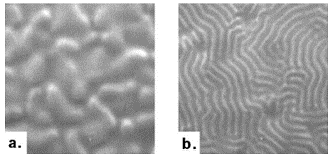

Two
electroconvection (EC) pattern morphologies - a cellular
and a subsequent roll pattern - have been
detected in the same frequency range in a nematic with
positive permittivity and conductivity anisotropies. The frequency
dependences of the onset voltages and critical wave numbers have been
determined both for homeotropic and planar alignments. It has been proven that
both pattern morphologies have a dielectric time symmetry. We also discuss
possible sources for the pattern formation in the frame of both the isotropic
(Felici-Benard) mechanism, as well as the standard model of EC.
[P. Kumar, J. Heuer, T.
Tóth-Katona, N. Éber, and Á. Buka: Convection-roll
instability in spite of a large stabilizing torque. Phys. Rev. E 81, 020702(R)
(2010)] [pdf]

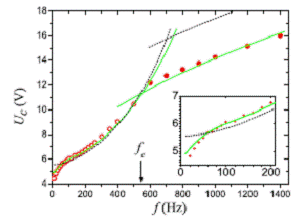

We reexamine the influence of the flexoelectricity on the electroconvection (EC), the effect which has previously been studied in the conductive EC regime only. Now we extend our studies to the dielectric EC, and to the parameter range for which the standard model of EC excludes the existence of the instability. First, we demonstrate that inclusion of flexoelectricity into the standard model of EC provides a finite EC threshold even for this "forbidden" material parameter range (in accordance with the experiments). Second, we show that flexoelectricity considerably decreases the threshold voltage for the dielectric regime. Finally, we present a novel frequency dependence of the threshold voltage for all EC patterns in the case when the period of the driving frequency becomes comparable with the director relaxation time.
|
|
[T. Tóth-Katona, N. Éber, Á. Buka: Flexoelectricity in electroconvection. Mol. Cryst. Liq.
Cryst. 511, 11-24 (2009)] [pdf]
The onset of electroconvection in binary mixtures of a bent-core and a rod-like nematic has been characterized by measuring the threshold voltage Uc and the critical wave number of the pattern in a wide range of frequencies f. In the mixtures rich in bent-core molecules, a "conductive-prewavy2-patternless-prewavy1" morphological sequence has been detected with an unusual negative slope of Uc(f) at high frequencies. This latter scenario seems to be related to the bent-core component, as it disappears with in creasing the concentration of rod-like molecules. In addition, one of the parameters most relevant for electroconvection, the electrical conductivity, has also been varied by ionic salt doping. It has been found that the above effect of the banana-shaped molecules on the electroconvection scenarios can be suppressed by the conductivity. |
|
[S. Tanaka, H. Takezoe, N. Éber, K.
Fodor-Csorba, A. Vajda, and Á. Buka: Electroconvection in nematic mixtures of
bent-core and calamitic molecules. Phys. Rev. E 80, 021702 (2009)]
[pdf]
For many years it
has been commonly accepted that electroconvection (EC) as primary instability
in nematic liquid crystals for the "classical" planar geometry
requires a positive anisotropy of the electric conductivity, sa, and a slightly
negative dielectric anisotropy, ea. This firm belief
was supported by many experimental and theoretical studies. Recent experiments,
which have surprisingly revealed EC patterns at negative conduction anisotropy
as well, have motivated the theoretical studies in this paper. It will be
demonstrated that extending the common hydrodynamic
description of nematics by the usually neglected flexoelectric effect allows for a
simple explanation of EC in the "nonstandard"
case sa>0.
[A.
Krekhov, W. Pesch, N. Éber, T. Tóth-Katona, Á. Buka: Nonstandard
electroconvection and flexoelectricity in nematic liquid crystals. Phys. Rev. E, 77, 021705 (2008)]
[pdf]

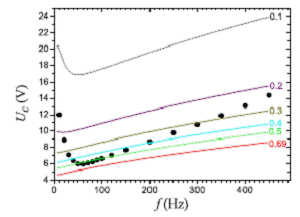

A systematic
overview of various electric-field induced pattern forming instabilities in
nematic liquid crystals is given. The standard hydrodynamic description of
nematics predicts the occurrence of striped patterns
(rolls) in various wavenumber ranges, which depend
on the anisotropy of the dielectric permittivity and that of the electrical
conductivity as well as on the initial director orientation (planar or
homeotropic). We discuss in detail three basic configurations with emphasis on
the characterization of the threshold voltage and the critical wavenumber of
the resulting patterns. Some features of the weakly
nonlinear behavior are also addressed. Experimental exploration of
additional pattern types, not captured by the standard model of
electroconvection, is also presented. The impact of flexoelectricity as a
possible explanation of the nonstandard EC patterns is discussed.
[Á. Buka, N. Éber, W. Pesch, L.
Kramer: Isotropic and anisotropic electroconvection. Phys. Reports, 448,
115-132 (2007)] [pdf]
Electric-field-driven
pattern formation has been investigated in a nematic
liquid crystal with negative dielectric and conductivity anisotropies.
Despite the fact that the standard Carr-Helfrich theory predicts no
hydrodynamic instability for such compound, experiments
reveal convection patterns which we call nonstandard
electroconvection (ns-EC). In this work, we characterize the ns-EC
patterns by measuring the frequency, thickness, and temperature dependence of
the threshold voltage, wave number, roll orientation, etc., and compare them
with the standard-EC (s-EC) characteristics. For the first time, we report traveling rolls in ns-EC, and we give the dependence
of the Hopf frequency on the driving frequency, temperature, and sample
thickness. Finally, we discuss possible sources for the existence of these
patterns.
[T. Tóth-Katona, A.
Cauquil-Vergnes, N. Éber, Á. Buka: Non-standard electroconvection with
Hopf-bifurcation in a nematic with negative electric anisotropies.
Phys.
Rev. E, 75, 066210 (2007)] [pdf]
A systematic overview of various electric-field induced pattern forming
instabilities in nematic liquid crystals is
given. Particular emphasis is laid on the characterization of the
threshold voltage and the critical wavenumber of the resulting patterns. The
standard hydrodynamic description of nematics predicts the occurrence of striped patterns (rolls) in five different wavenumber ranges, which depend on the anisotropies of
the dielectric permittivity and of the electrical conductivity as well as on
the initial director orientation (planar or homeotropic). Experiments have
revealed two additional pattern types which are not captured by the standard
model of electroconvection and which still need a theoretical explanation.
[Á.
Buka, N. Éber, W. Pesch, L. Kramer: Convective patterns in liquid crystals driven
by electric field. In.. Self-Assembly,
Pattern Formation and Growth Phenomena in Nano-Systems, Eds. A. A.
Golovin, A. A. Nepomnyashchy, NATO Science Series II, Mathematica, Physics and
Chemistry, Vol. 218, Springer, Dordrecht, 2006, pp. 55-82] [pdf]
We characterize three nonstandard electrohydro-dynamic instabilities in nematic liquid crystals composed of bent-core molecules. In addition to their shape, another important attribute of this material is that the anisotropy in the electrical conductivity changes sign as the frequency of the applied electric field changes. These instabilities do not appear to fit within the standard model for electroconvection. The first instability creates a pattern with stripes parallel to the initial director orientation, with a wavelength about equal to the separation of the cell plates. The next is the previously reported prewavy instability. The third instability is optically and dynamically identical to the prewavy instability, but is distinguished by different threshold behavior. |
|
[D. B. Wiant, J. T.
Gleeson, N. Éber, K. Fodor-Csorba, A. Jákli, T. Toth-Katona: Non-Standard
Electroconvection in a Bent Core Nematic. Phys. Rev. E 72, 041712 (2005)]
[pdf]
